RIG 208
DRAWWORKS
Walker Neer Apache 250-40
Capacity: 250,000 lbs
Rated Power: 400 HP
DERRICK & SUBSTRUCTURE
Walker Neer Three Axle Trailer
Floor Height: 6’, Clear Working Height: 4‘
Rotary Capacity: 250,000 lbs
No Setback
PUMPS
Ideco MM550, 550 HP, 15” Stroke
Caterpillar C-15 Mud Pump Drive
MUD SYSTEM
One Taknk System: 550 bbls
No Shakers, Desilter, Desander, Vacuum Desaser, Trip Tank, or Mud Gas Separator
BOP / WELL CONTROL
Annular: 9“ x 3000 psi
MAST
Walker Neer Single – 60’
Static Hook Load: 250,000 lbs
4 Lines, 1” Drill Line Size
No Setback Racking Capacity
RIG 211
DRAWWORKS
Walker Neer Apache 250-40
Capacity: 250,000 lbs
Rated Power: 400 HP
DERRICK & SUBSTRUCTURE
Walker Neer Three Axle Trailer
Floor Height: 6’, Clear Working Height: 4‘
Rotary Capacity: 250,000 lbs
No Setback
PUMPS
Ideco MM550, 550 HP, 15” Stroke
Caterpillar C-15 Mud Pump Drive
MUD SYSTEM
One Tank System: 550 bbls
No Shakers, Desilter, Desander, Vacuum Desaser, Trip Tank, or Mud Gas Separator
BOP / WELL CONTROL
Annular: 9“ x 3000 psi
MAST
Walker Neer Single – 60’
Static Hook Load: 250,000 lbs
4 Lines, 1” Drill Line Size
No Setback Racking Capacity
RIG 222
DRAWWORKS
750 HP Cooper SD Draw works powered by 2
CAT 3406 engines with Allison CLT-750 transmission
DERRICK & SUBSTRUCTURE
131’ H- 500,000 # Lee C. Moore (Mast fitted for top drive installation)
15’ H x 40’ L Substructure
LIGHT PLANT
Generator Set powered by 2 CAT SR4 320 KW/CAT C-15’s
PUMPS
#1: F1000 Triplex Mud Pumps with 5000# Fluid Ends powered by 2 CAT D398’s
#2: F1000 Triplex Mud Pumps with 5000# Fluid Ends powered by 2 CAT D398’s
MUD SYSTEM
800 barrel 2 Tank Mud System with VORTEX 3000 Shaker, Agitators & Centrifugal
Pumps. 8’W x 20’L Mud House w/Hooper with Five Star 2500 Mud Slinger
& 5”x 6”x 11” Centrifugal pump
ROTATING & TRAVELLING EQUIPMENT
National 17 1/2 Rotary Table
SKYTOP BREWSTER 250 ton Block/Hook with GSX Swivel
B.O.P. EQUIPMENT
Regan 11” x 3000# SHAFFER Type E 11” 3M Double BOP with KOOMEY 40 gallon
Closing Unit & NWP Choke Manifold
DRILL PIP & COLLARS
3 8” Drill Collars
20 6 1/2 Drill Collars
10,500’- 4 1/2 16.6 Double White Drill Pipe
Pipe Racks, Junk Baskets, Miscellaneous handling tools & parts
ADDITIONAL EQUIPMENT
Water Tank 500 bbls
Mathey Wireline Unit
I-R Air Hoist & Handling Tools
8000 Gallon Fuel Tank skid mounted

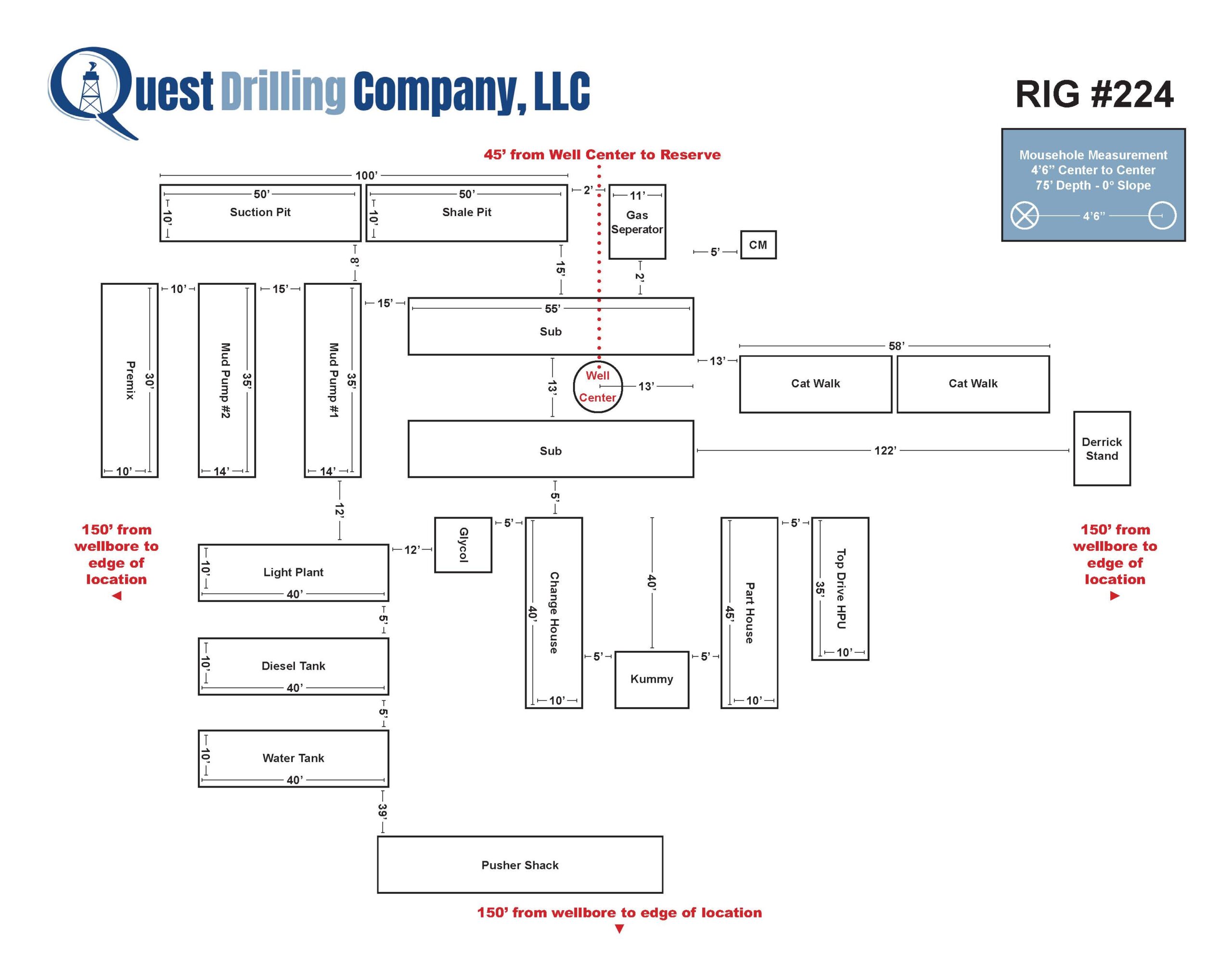

RIG 224
DRAWWORKS
OWI – 1000 with 1 ¼ Drilling Line Powered by (2) Caterpillar C-18’s (1200 HP)
HYDRAULIC TOP DRIVE
Warrior 250T Hydraulic Top Drive Powered by Caterpillar C-15 Diesel Engine
26.000 ft-lbs Drill Torque, 29,000 ft-lbs Makeup, 32,000 ft-lbs Breakout
MAST & SUBSTRUCTURE
Pyramid Cantilever 136’ Triple Derrick 550,000 # SHL Capacity
Racking Capacity 17,000’ With 4” Drill Pipe
Oil Works Box on Box 18’ Floor Height 18’ KB
Rotary Capacity: 550,000 lbs and Setback Capacity: 390,000 lbs
MUD PUMPS
(2) MP 1600 HP Triplex Powered by Caterpillar 3512 Diesel Engines
ROTATING AND TRAVELING EQUIPMENT
National c-275 Rotary Table
Emsco 250 Ton Hook Block Combo
B.O.P. EQUIPMENT
Shaffer Type 11″ 5,000 PSI
Shaffer Type 11″ 5,000 PSI Double Ram
NOV 12 bottle / 4 station 3000 PSI Closing Unit
GENERATORS
(2) Caterpillar Diesel Engines w/ 320 KW Generators
MUD SYSTEM
(2) Pit Mud System 800 Barrels
(1) Derrick Super G Shale Shaker
140 Barrel Pre-Mix
DRILL PIPE & DRILL COLLARS
21 – 6 ¼ Drill Collars with 4 ¼ XH Connections
3 – 8″ Drill Collars with 6 ⅝ Regular Connections
4 ½ XH 16.60 # Grade G-105
ADDITIONAL INFORMATION
30 Loads Without Tubulars
Rig is designed to move without the use of cranes. Designed to be rigged up and down faster and safer.
